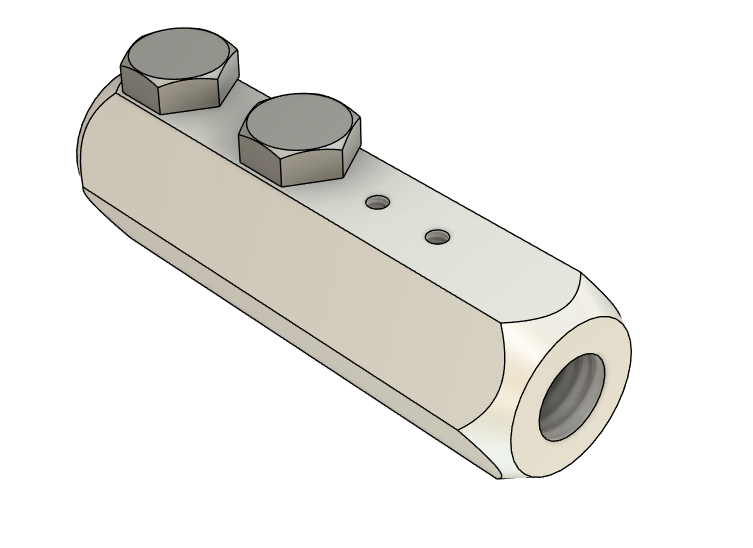

BB8B, Cable to Threaded Rod Bolt Base
UL Listed
Hex brass 2-bolt splicer for cable to threaded rod or air terminal. 5/16-18 stainless steel bolts. 2-7/8 x 3/4 inch hex (7.3 x 2.15 cm); approximately 5 oz. (142 g). Use suffix 3/8,1/2 or 5/8 inch to denote air terminal thread size.| Specifications | |
| material | Brass |
| available thread size | 3/8,1/2 or 5/8 in. |
| weight | 5 oz. (142 g) |
| dimensions | 2-7/8 x 3/4 in. (7.3 x 2.15 cm) |
Manufacturer Installation Recommendations
- Secure the base to the structure with appropriate method of attachment.
- Loosen the two bolts.
- Slide the cable into the end of the hex piece that is not threaded. Twisting the cable with the lay of the cable assists in this process.
- Tighten the bolt to 100 inch pounds.
